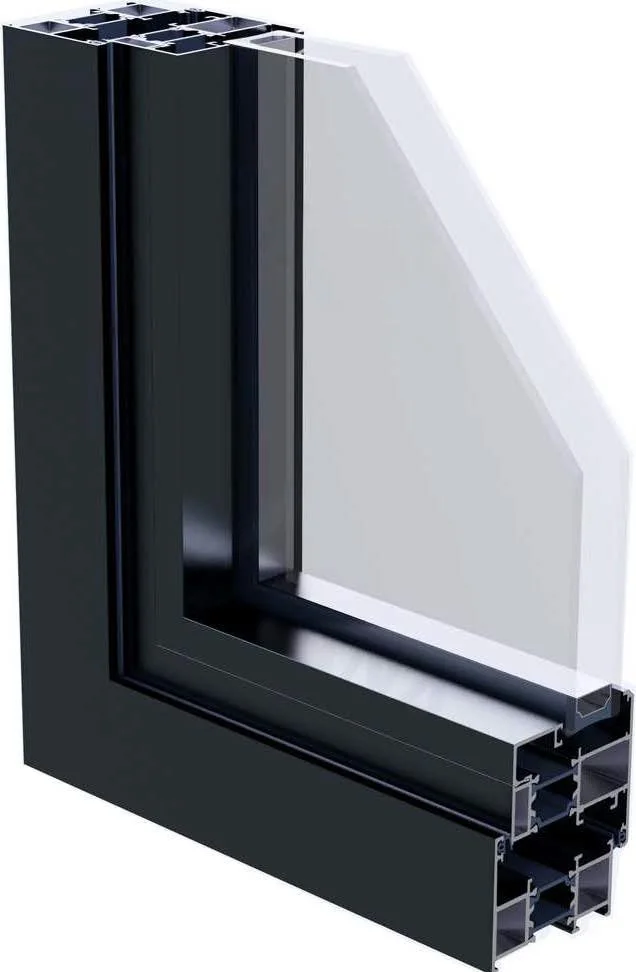

65 series - aluminum casement doors (exterior)
standard:
dual pane glazing
thermal break
powder coated
multi-point locking
supporting weight of 660lbs/panel
options:
widths up to 5’-0”/panel
heights up to 11’-0”
1 or 2 door panels
straight or arch top
mosquito screen
muntins

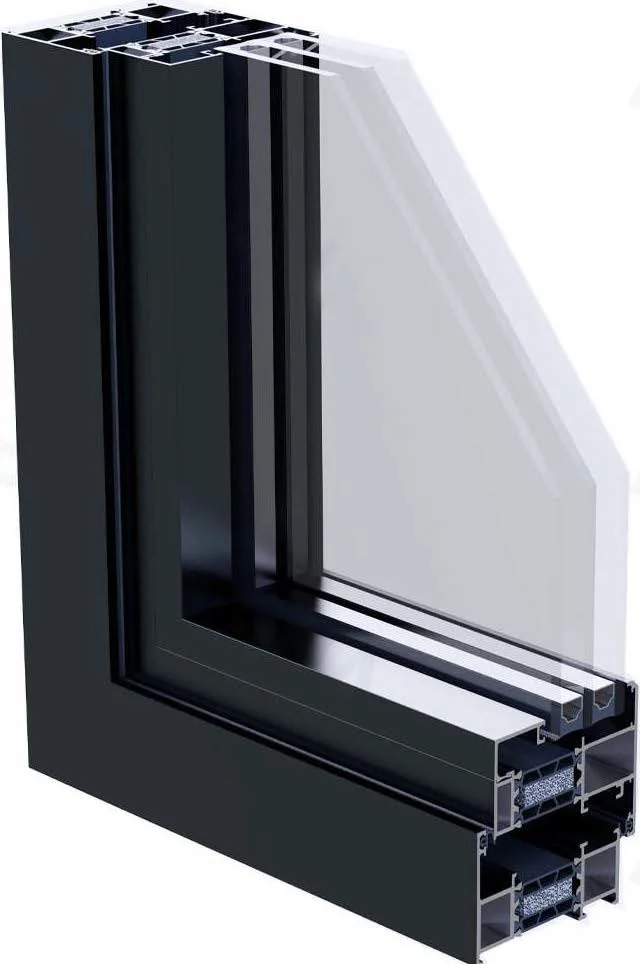

75 series - aluminum casement doors (exterior)
standard:
triple pane glazing
thermal break
powder coated
multi-point locking
supporting weight of 660lbs/panel
options:
widths up to 5’-0”/panel
heights up to 11’-0”
1 or 2 door panels
straight or arch top
mosquito screen
muntins

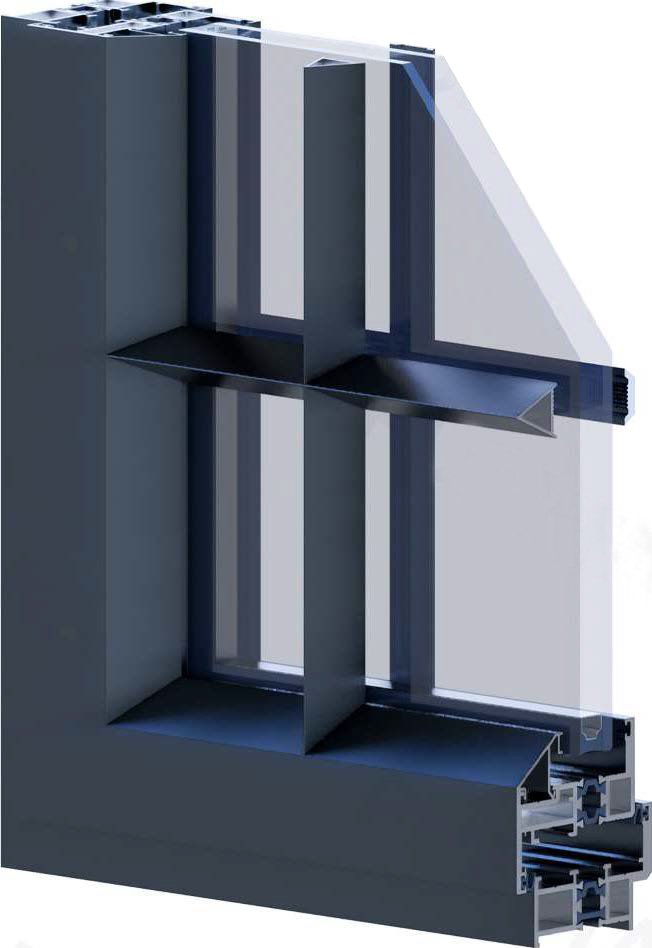

60 series - aluminum casement doors (exterior) simulated steel
standard:
dual pane glazing
thermal break
powder coated
multi-point locking
supporting weight of 330lbs/panel
simulated steel muntins
options:
widths up to 4’-0”/panel
heights up to 8’-0”
1 or 2 panels w/ sidelites
straight or arch top
60 series - aluminum casement doors (interior partitions) steel look
options:
widths up to 3’-6”/panel
heights up to 10’-0”
side hung of 1 or 2 panels w/ sidelites
straight or arch top
steel look muntins
possibility of no bottom frame
standard:
single pane glazing
powder coated
multi-point locking
supporting weight of 175lbs/panel

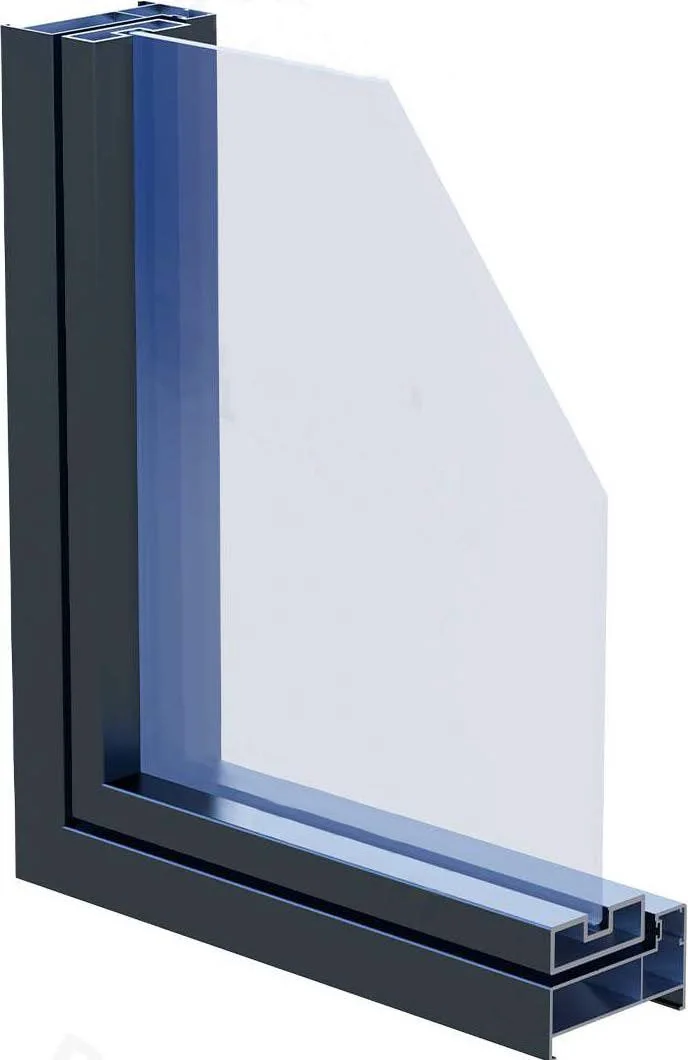

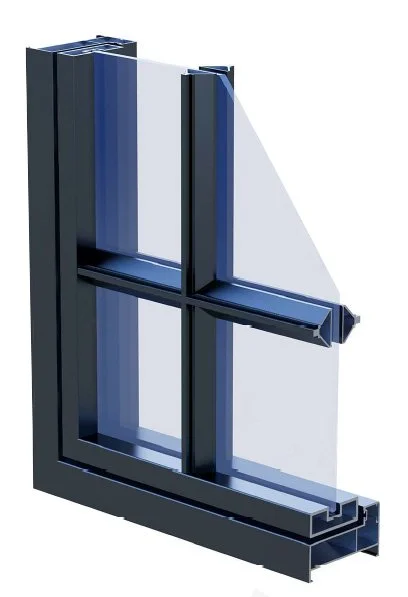

16 series - aluminum casement doors (interior partitions) slimline
options:
widths up to 3’-6”/panel
heights up to 9’-10”
side hung of 1 or 2 panels w/ sidelites
straight or arch top
simulated steel muntins
possibility of no bottom frame
standard:
single pane glazing
powder coated
multi-point locking
supporting weight of 175lbs/panel
