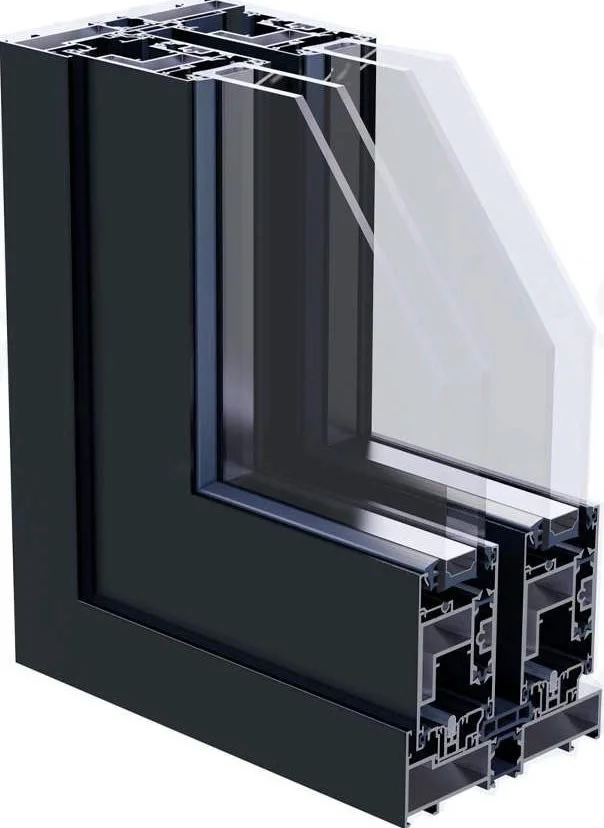

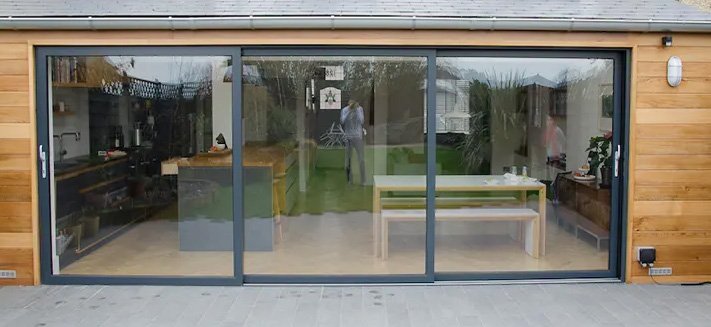

200 series - aluminum sliding doors (exterior)
standard:
dual pane glazing
thermal break
powder coated
multi-point locking
max. weight of 550lbs/panel
bottom rollers w/ top glide
3.25” panel frame
options:
widths up to 5’-0”
heights up to 11’-0”
sliding of 2, 3, 4, or even # of panels
possibility of multiple rails
stainless steel mesh
lift & lock system

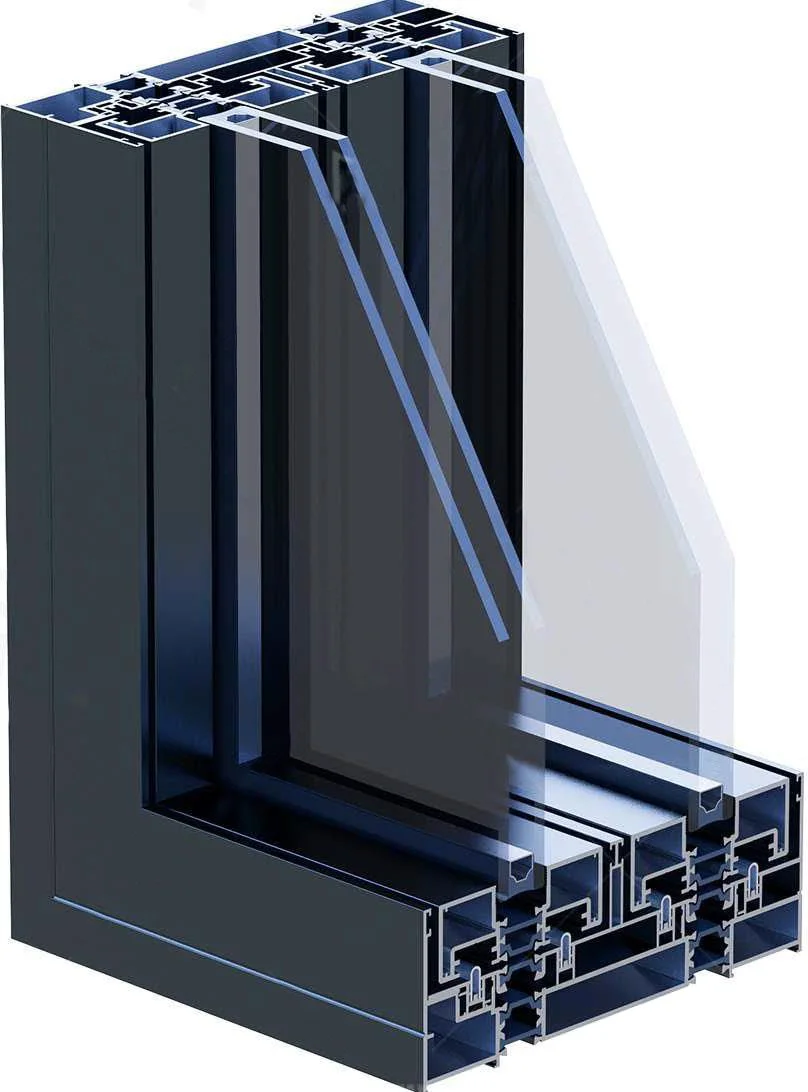

184 series - aluminum sliding doors (exterior) slimline
standard:
dual pane glazing
thermal break
powder coated
multi-point locking
max. weight of 330lbs/panel
bottom rollers w/ top glide
0” (hidden top & bottom)
panel frames
1” interlocker frame
options:
widths up to 6’-6”
heights up to 10’-0”
sliding of 2, 3, 4, 6, or 8 panels
possibility of 4 rails
stainless steel mesh

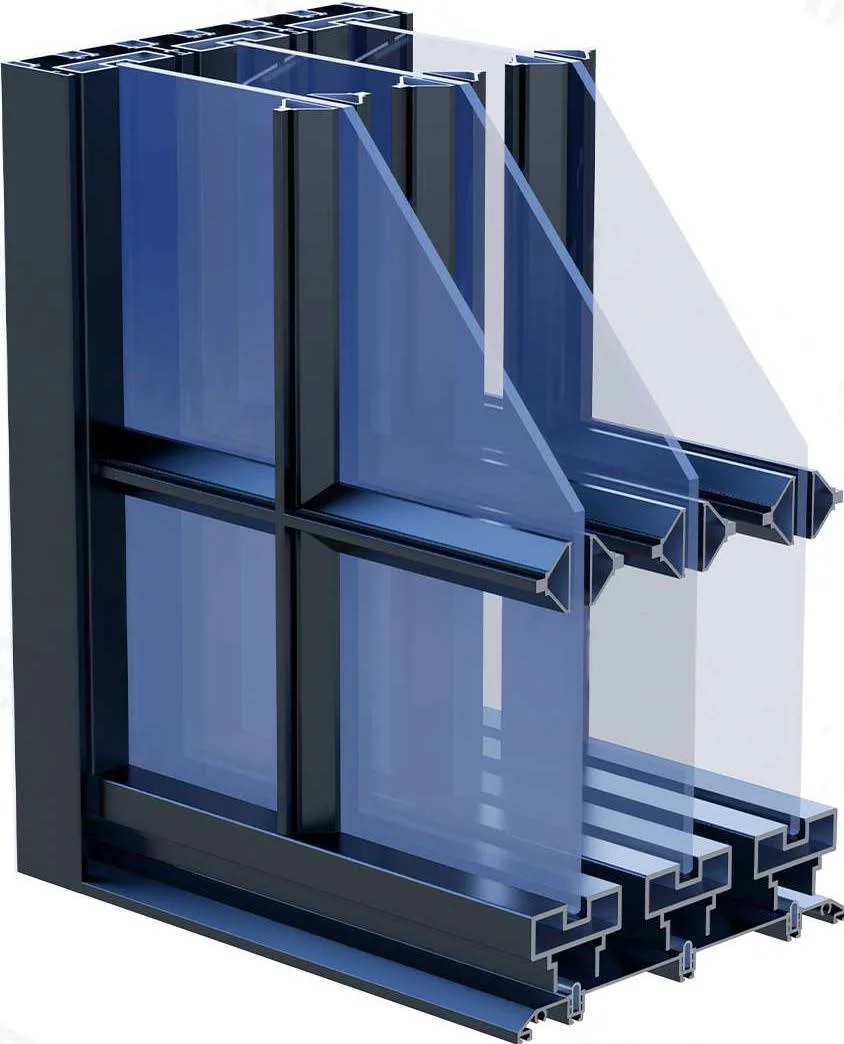

16 series - aluminum sliding doors (interior) slimline
standard:
single pane glazing
powder coated
max. weight of 175lbs/panel
top hung rollers
5/8” panel frame
options:
widths up to 4’-0”
heights up to 10’-0”
sliding of 1, 2, 3, 4, 5, 6, 7 or even # of panels
possibility of multiple rails
option for no side or bottom frame
