78 series:
sliding doors
The 78 series is the next generation development to the 200 series.
While keeping with the attractive performance values and aesthetic appeal, this system boasts a 1” smaller panel frame than the 200 series.
standard:
dual pane glazing
thermal break
powder coated
multi-point locking
max. weight of 330lbs/panel
bottom rollers w/ top glide
2.25” panel frame
options:
widths up to 5’-0”/panel
heights up to 11’-0”
sliding of 2, 3, 4, or even # of panels
possibility of multiple rails
lift & lock system
Drawings shown are for a 2-panel system.
Multiple rails with 2, 3, 4, or even number of panels are also available.
Details
Your Home -Your Configuration
Because of the versatility and smooth operation of sliding doors, you will get the most glass than any other door system, bringing the outside in for a nearly seamless transition.
We offer the following configurations for the 78 & 200 series:
single sliding, multi sliding, corner stacking, center locking, & pocket options.
Difference is in the Design
A combination of strong profiles, stainless steel rails, & polyamide rollers with needle bearings gives the strength for our large panel sliding doors.
Frames are assembled using eccentric pin or press, mitered corners. This, with stainless steel corner chevrons guarantee a perfect alignment.
All our sliding door systems come with themal breaks, either with glass fiber reinforced polyamide or customized polyethylene strips. These strips are specially designed to improve the thermal values without adding extra internal inserts in the frame profiles.

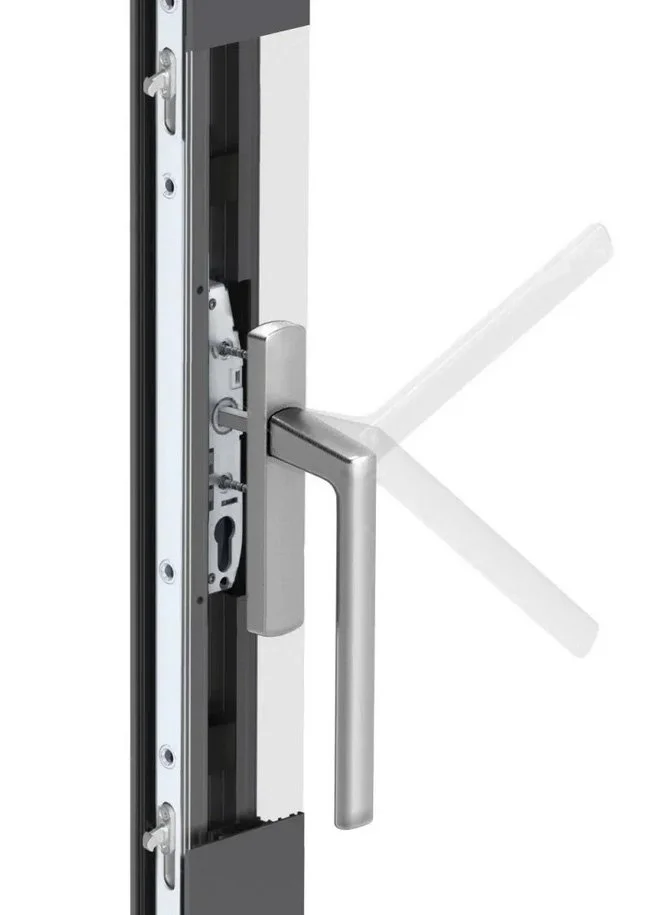

Lift-&-Lock system
Offered on our 78 & 200 series. This allows for the convenience of temporarily opening your door to any length while keeping it secured in-place. Simply turn the handle and the bottom roller lock lifts-up to keep a firm stance.
