184 series:
sliding doors
The 184 series is art with a purpose.
This is our minimalist system. blurring the inside from outside, providing a near seamless transition.
The panel frames sit within the outer frame to allow the outer frame to be recessed into the floor and wall components to cover tops and sides. This, along with the 1” interlocker frames, ensures that your views outdoors are always captured.
standard:
dual pane glazing
thermal break
powder coated
multi-point locking
max. weight of 330lbs/panel
bottom rollers w/ top glide
0” panel frame
(hidden within outer frame)1” interlocker frame
options:
widths up to 6’-6”/panel
heights up to 10’-0”
sliding of 2, 3, 4, 6, or 8 panels
possibility of 4 rails
stainless steel mesh

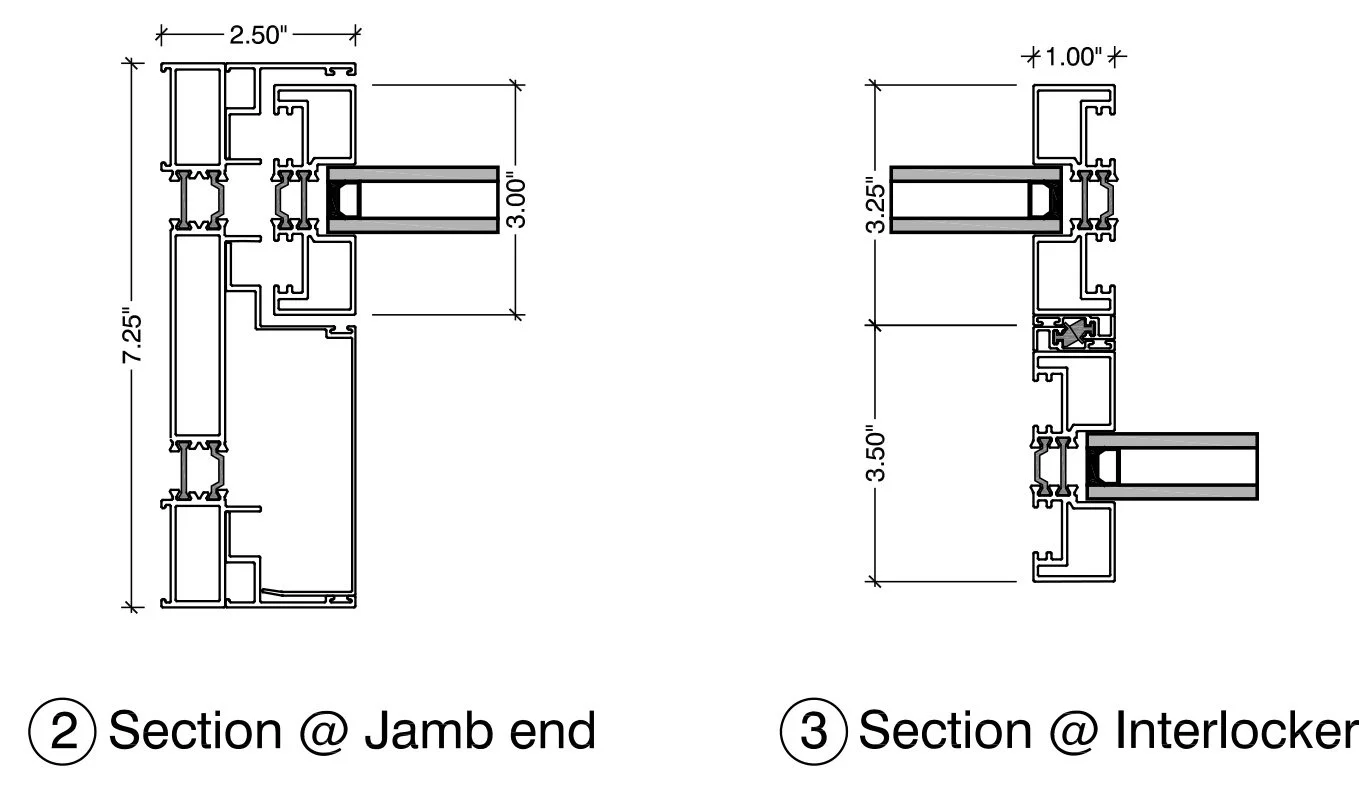

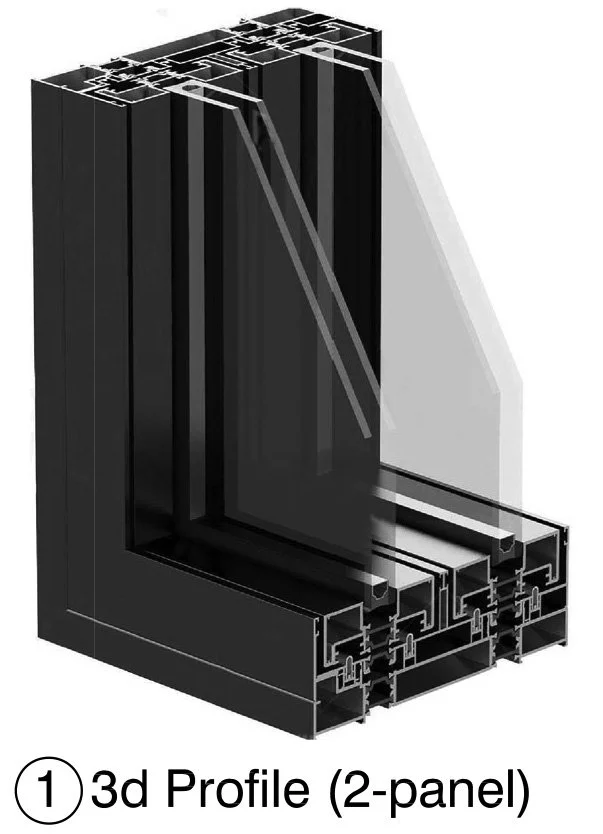

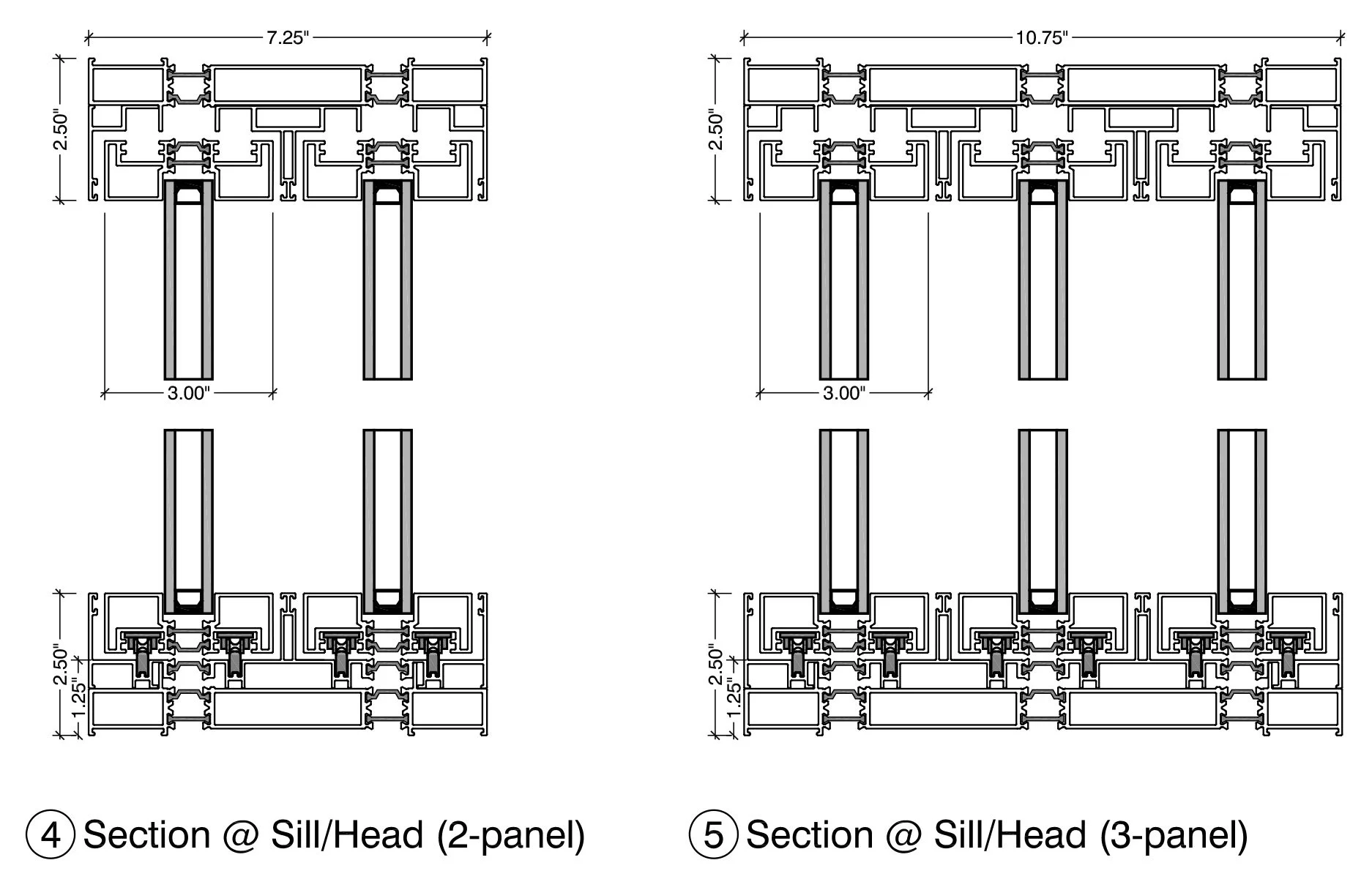

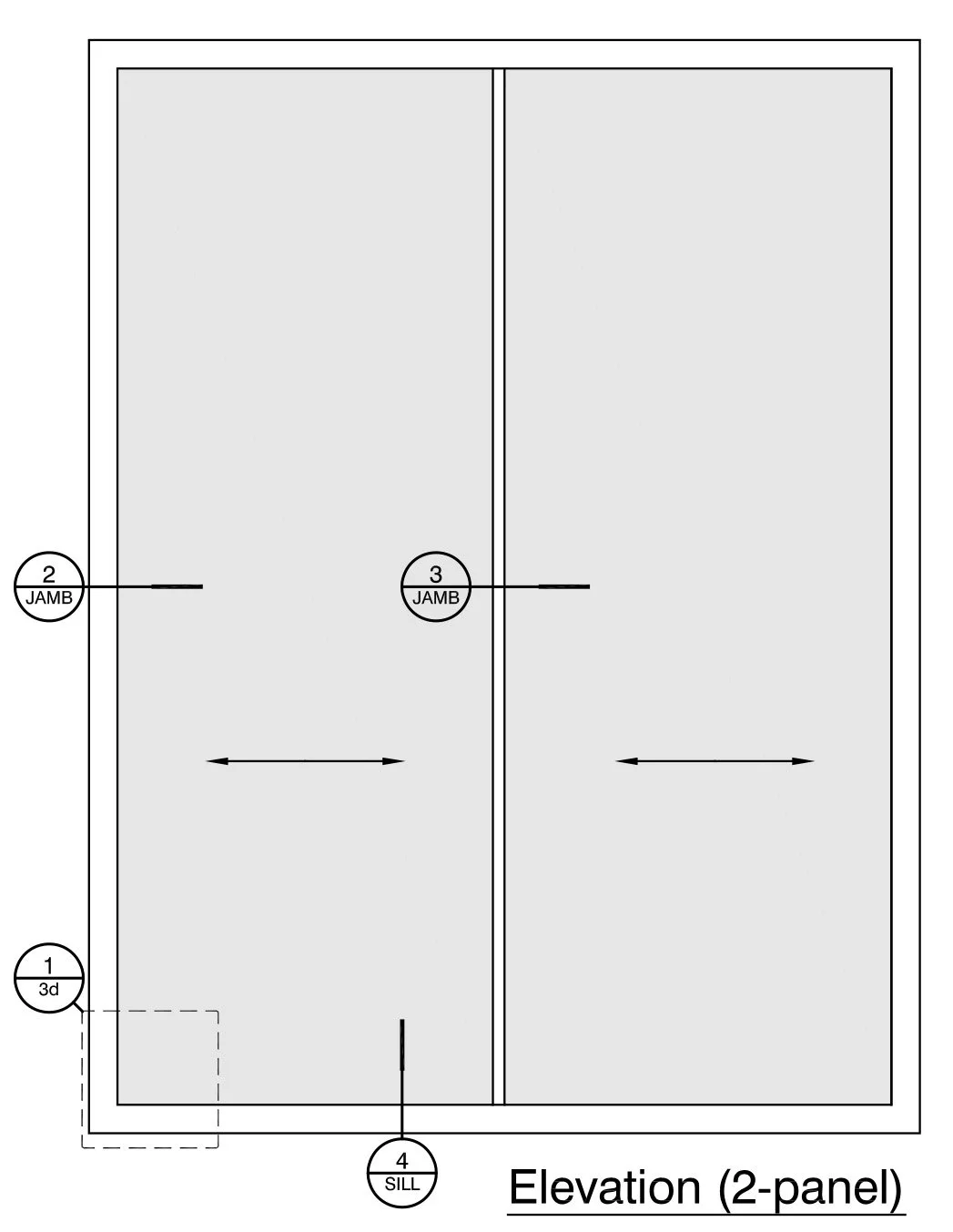

Drawings shown are for a 2-panel system.
Up to 4 rails with 2, 3, 4, 6, or 8 panels are also available.
Details
Your Home -Your Configuration
Because of the versatility and smooth operation of sliding doors, you will get the most glass than any other door system, bringing the outside in for a nearly seamless transition.
We offer the following configurations for the 184 series:

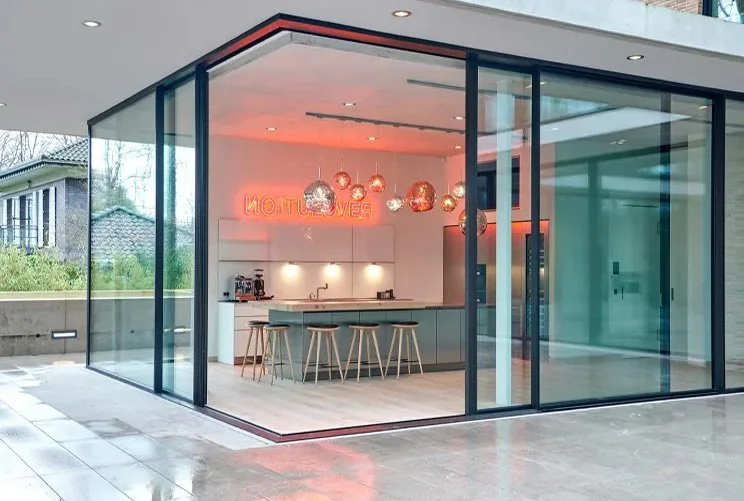

single sliding, multi sliding, corner stacking, center locking, & pocket options.
Difference is in the Design
A combination of strong profiles, stainless steel rails, & polyamide rollers with needle bearings gives the strength for our large panel sliding doors.
Frames are assembled using eccentric pin or press, mitered corners. This, with stainless steel corner chevrons guarantee a perfect alignment.
All our sliding door systems come with themal breaks, either with glass fiber reinforced polyamide or customized polyethylene strips. These strips are specially designed to improve the thermal values without adding extra internal inserts in the frame profiles.

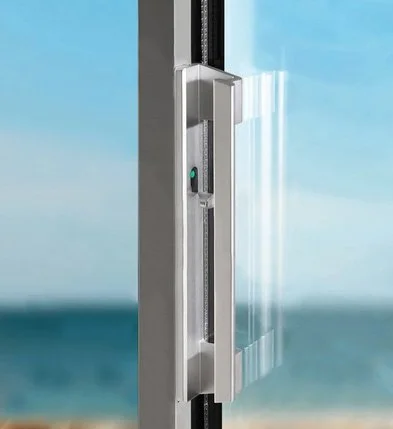

Specialty pulls and locks are used in keeping with the minimal frames.
