98 series:
folding doors
The 98 series is a little deeper in depth than the 78 series, but offers the option for larger panel sizes. Still all the great features and affordability.
standard:
dual pane glazing
thermal break
powder coated

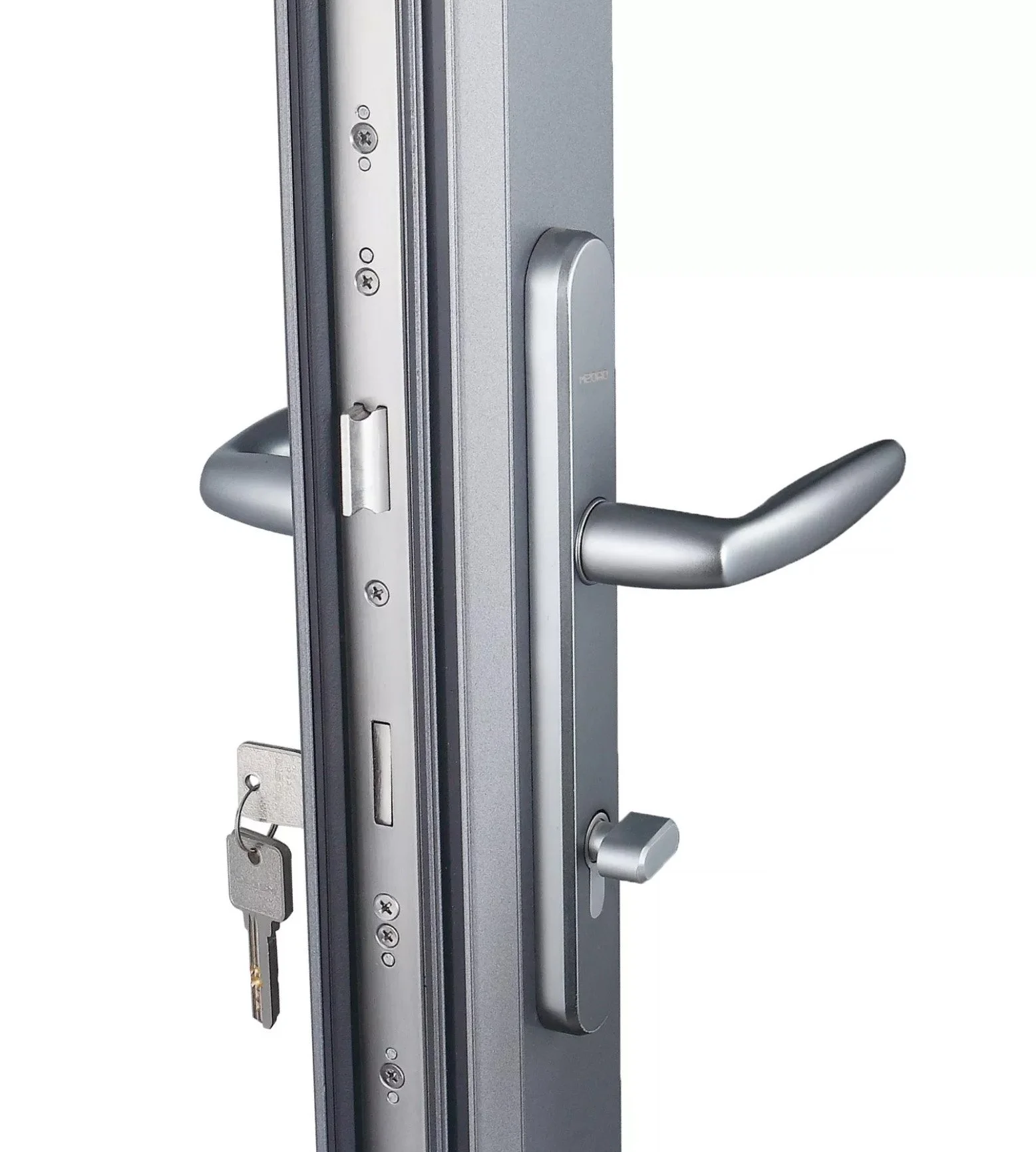

multi-point locking
max. weight of 400lbs/panel
bottom rollers w/ top glide
concealed hinges
finger-safe gaskets
2.50” panel frame
options:
widths up to 4’-0”/panel
heights up to 13’-8”
multiple panels
90 degree corner without mullion
mosquito screen
low-profile threshold
Details

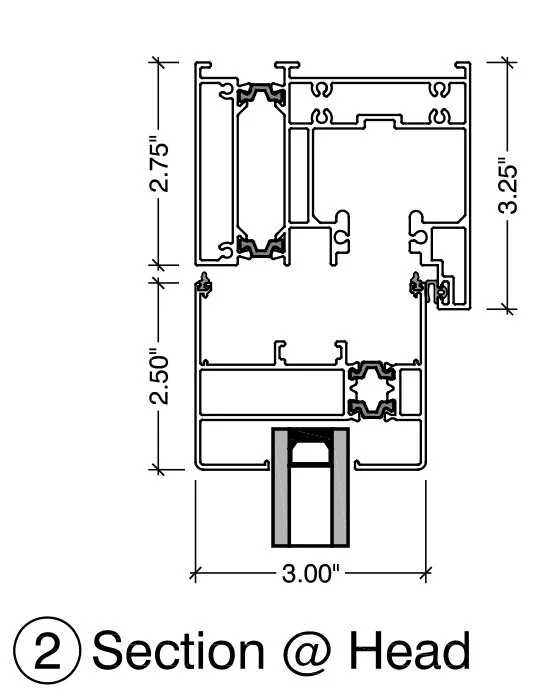

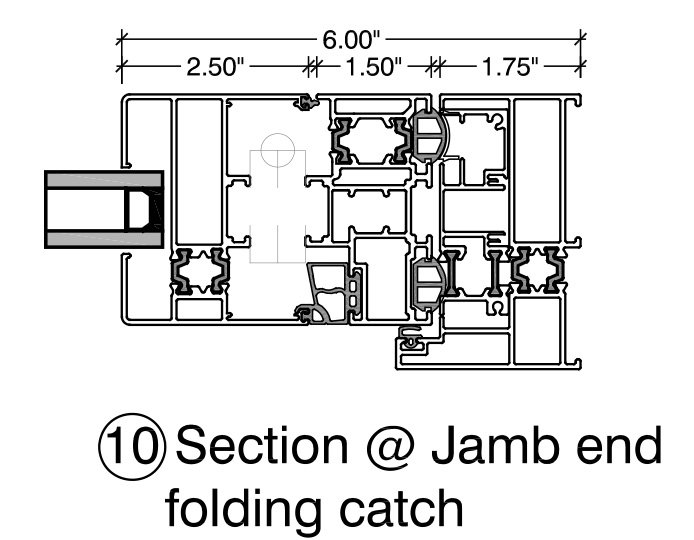

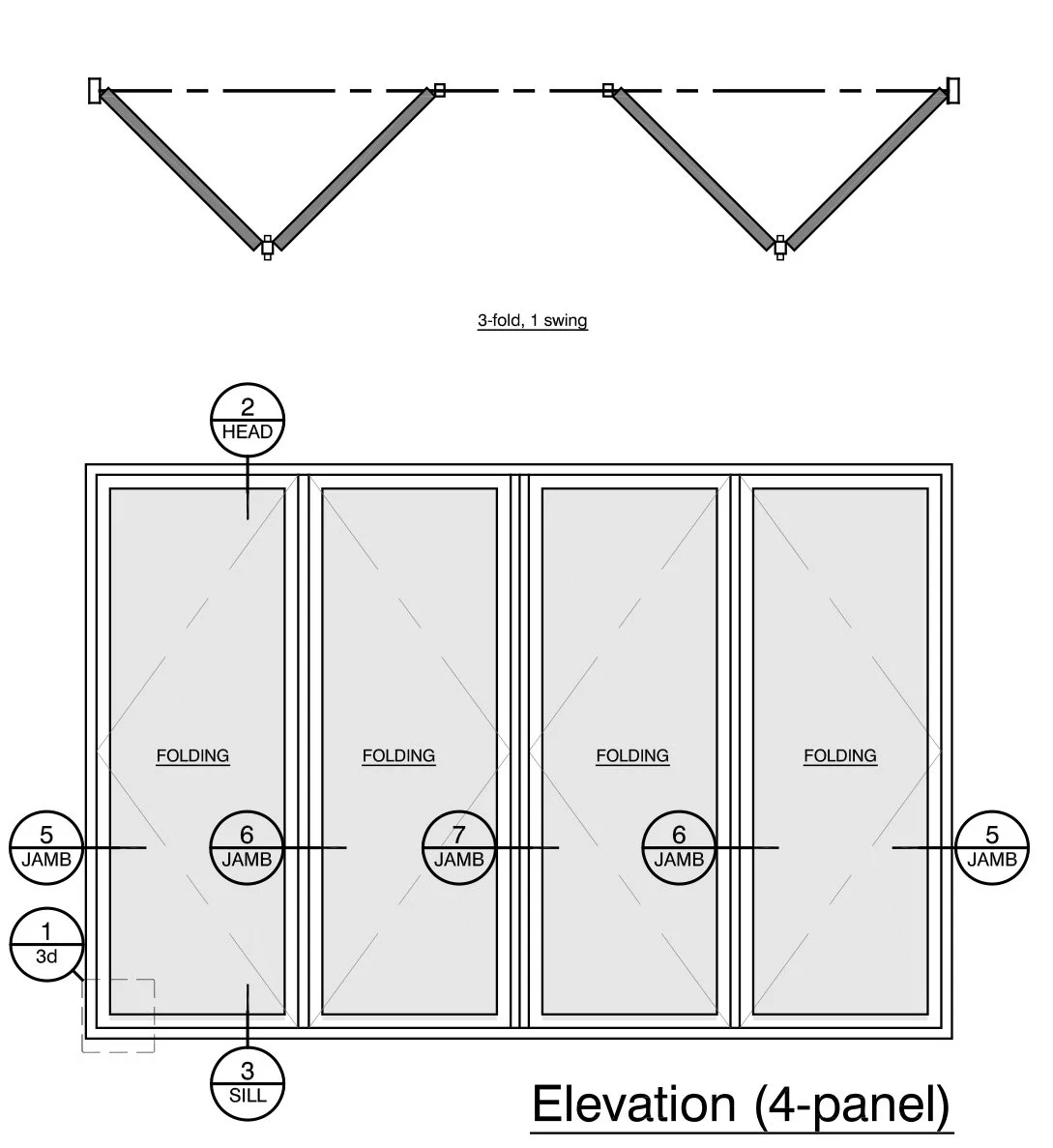

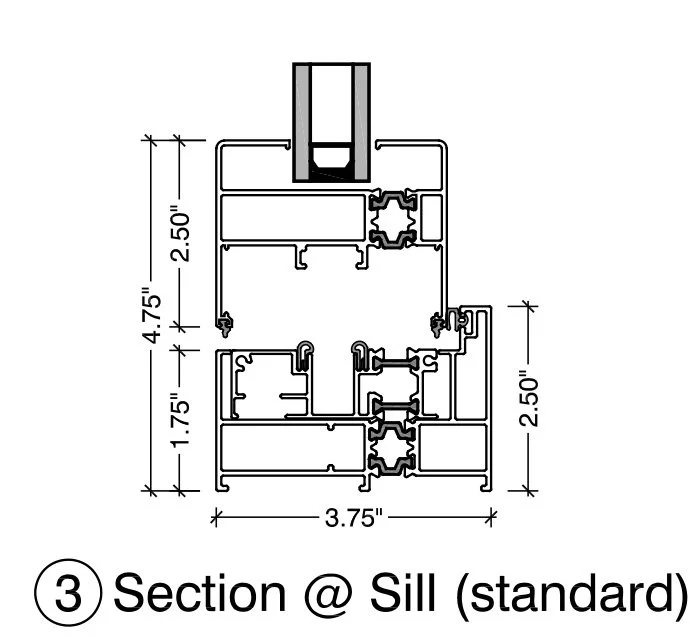

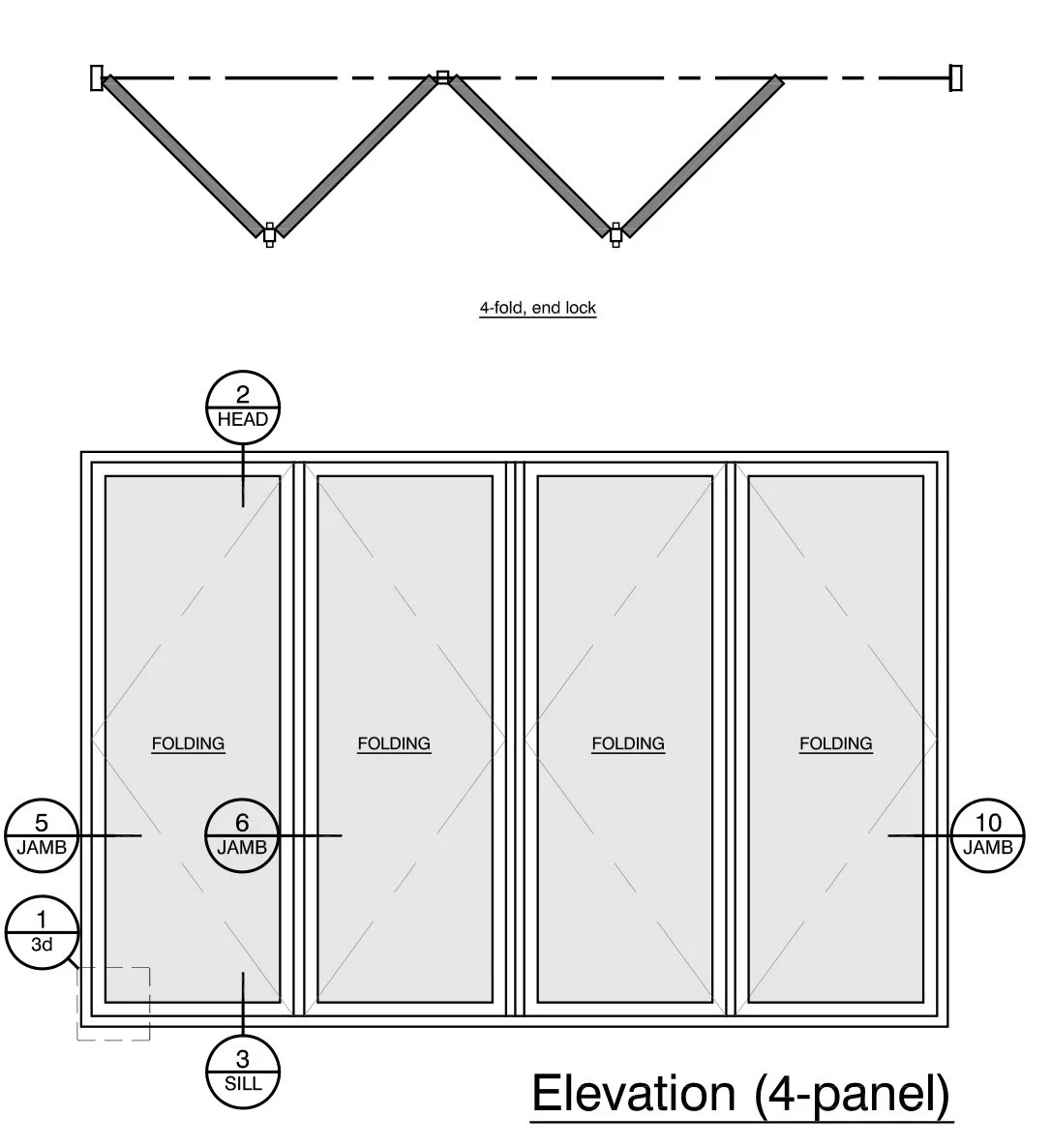

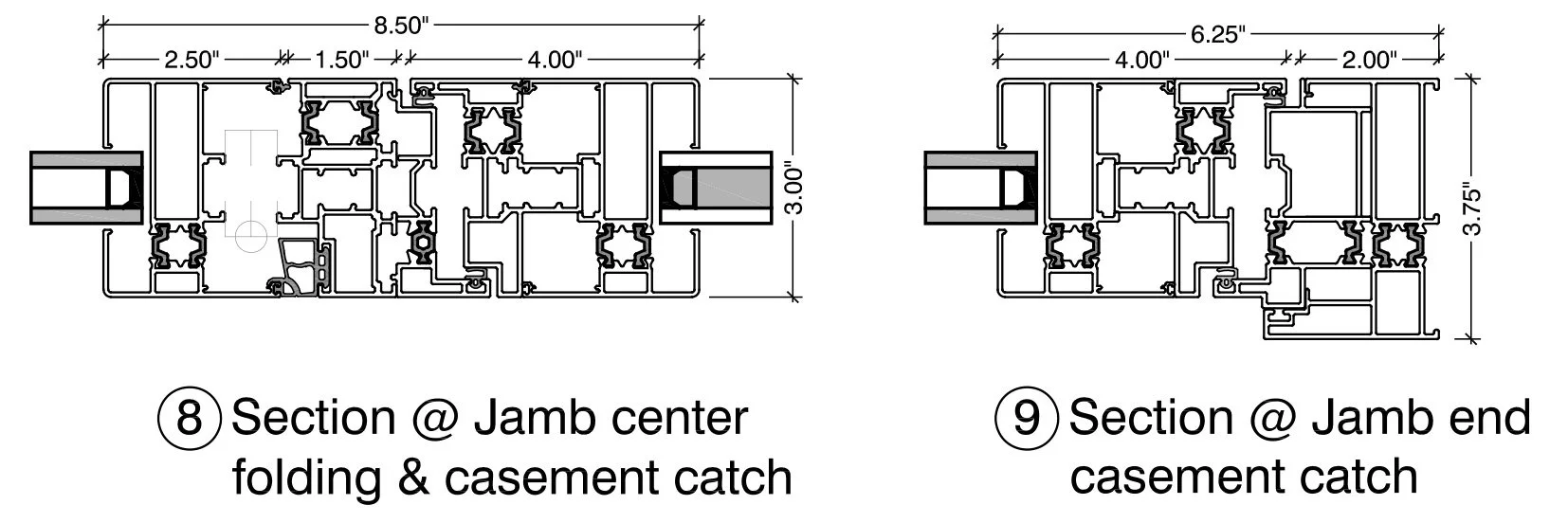

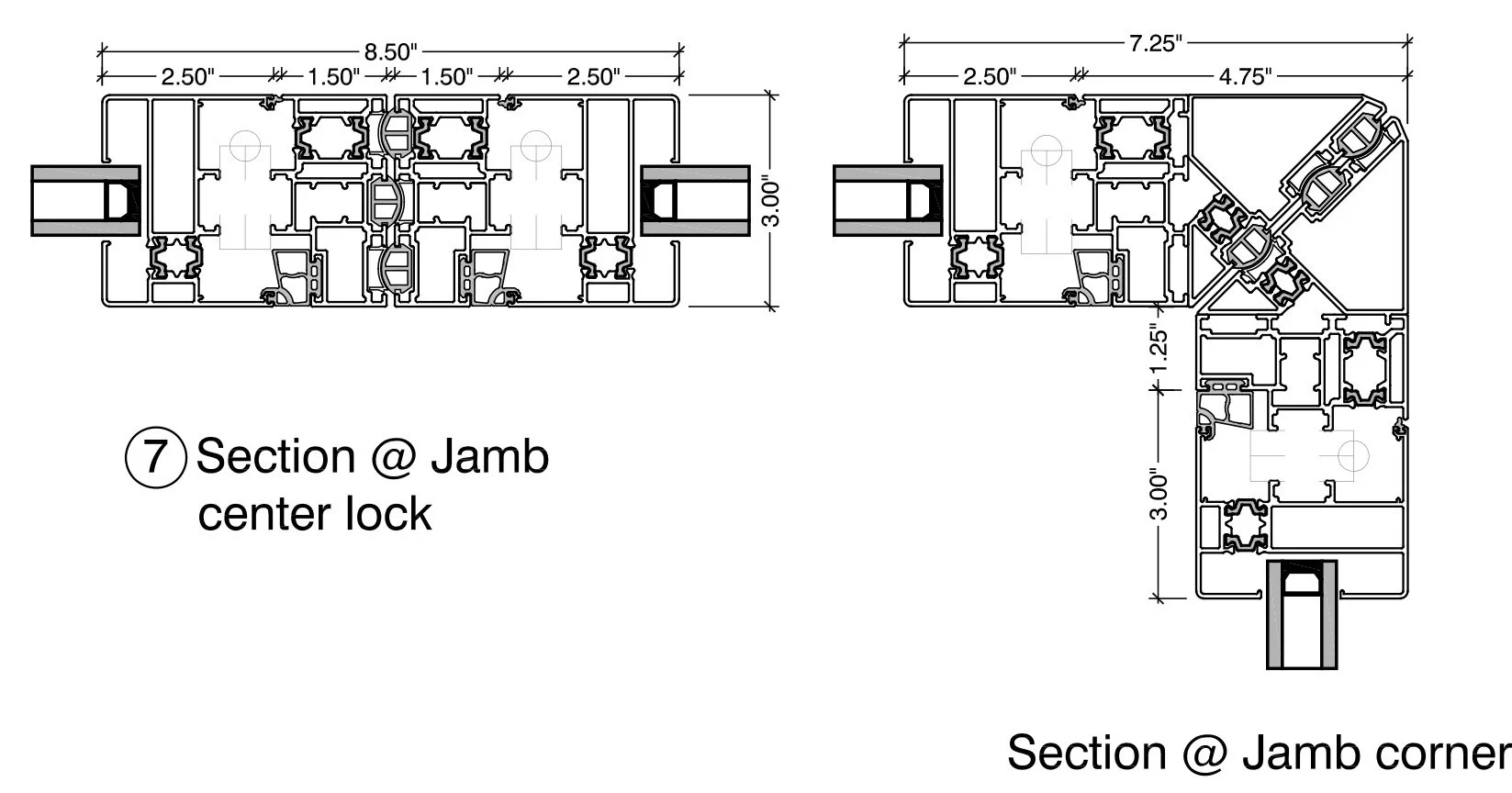

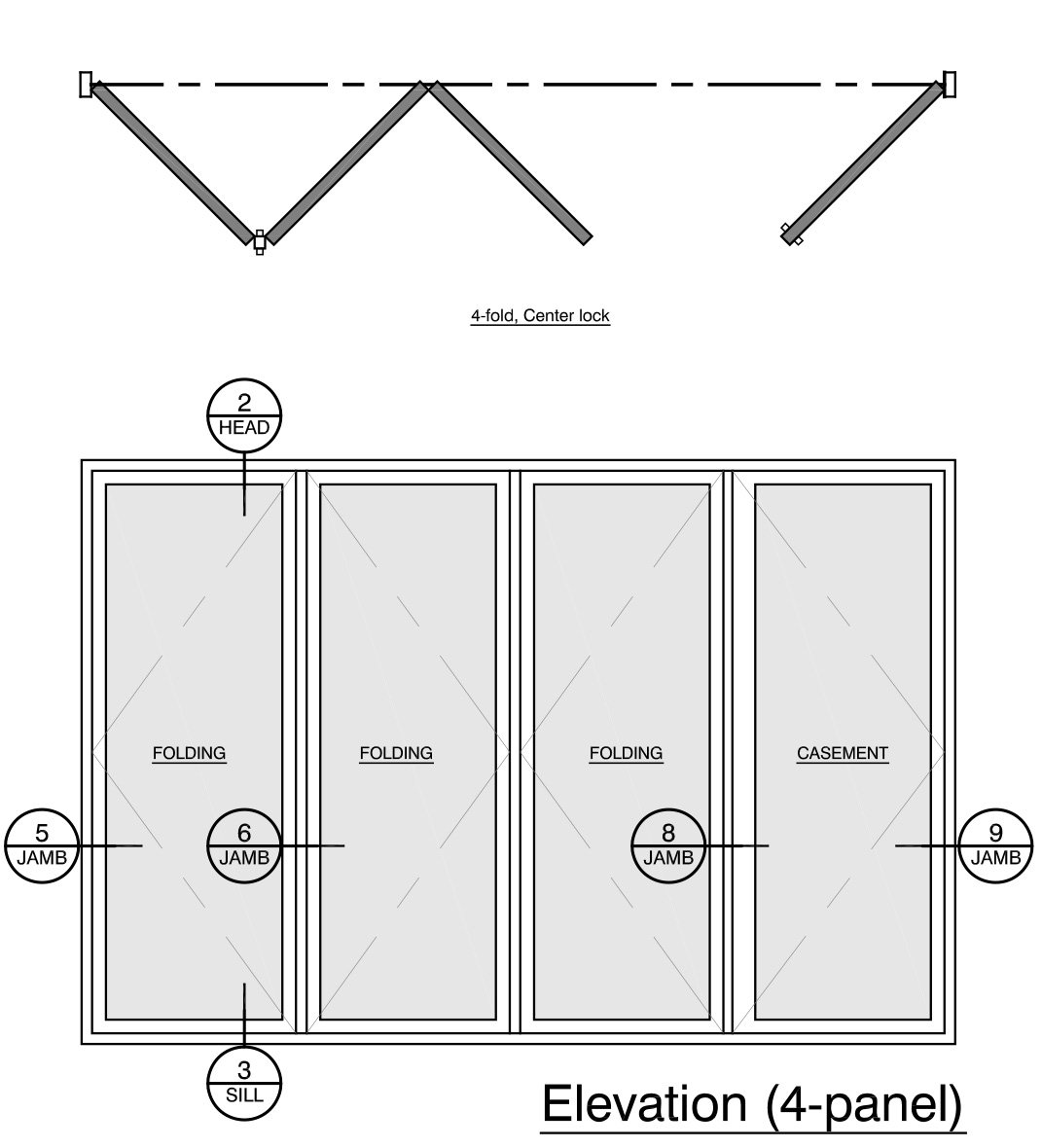

Drawings shown are for a 4-panel system.
Multiple panels & configurations are also available.

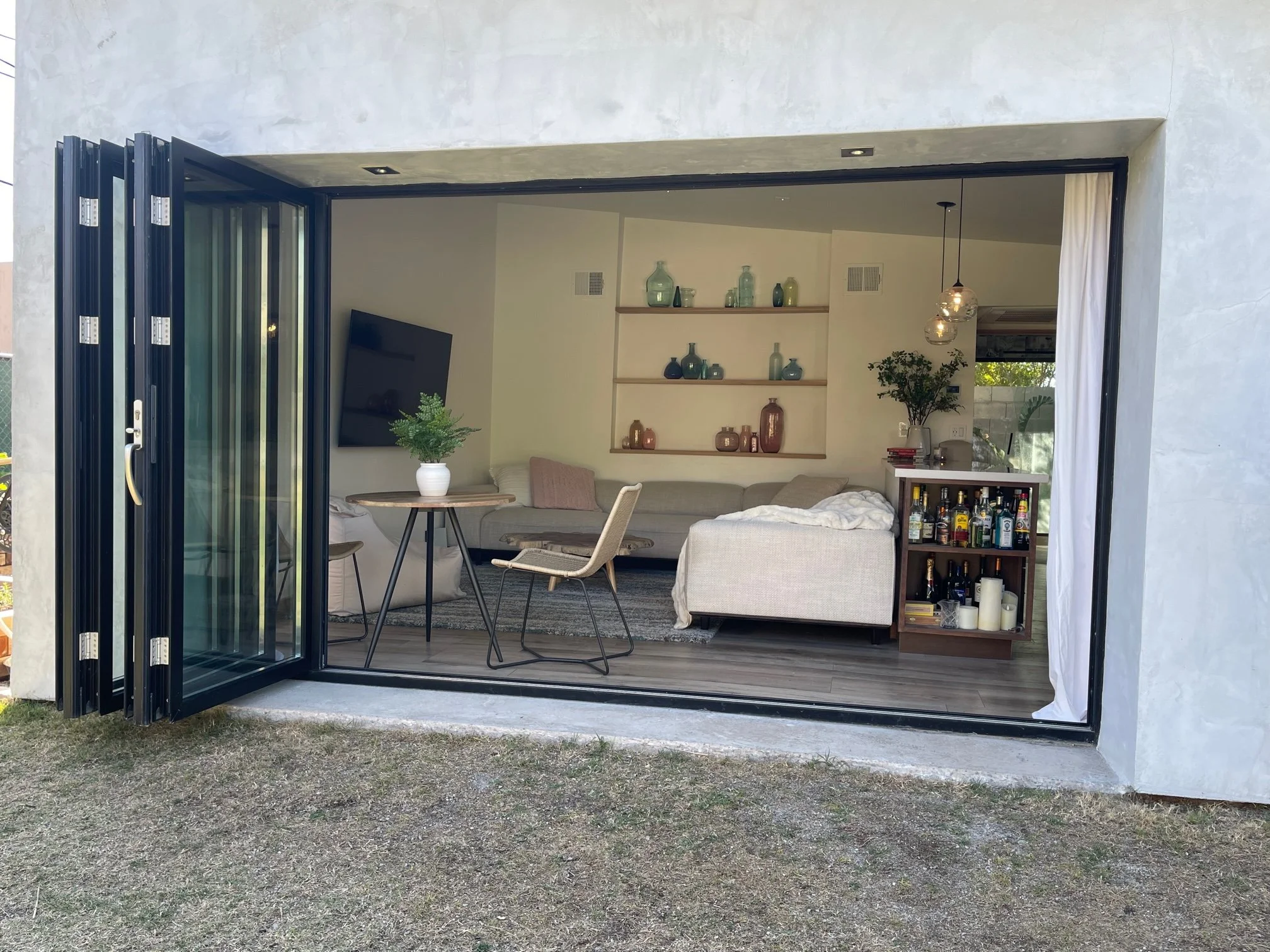

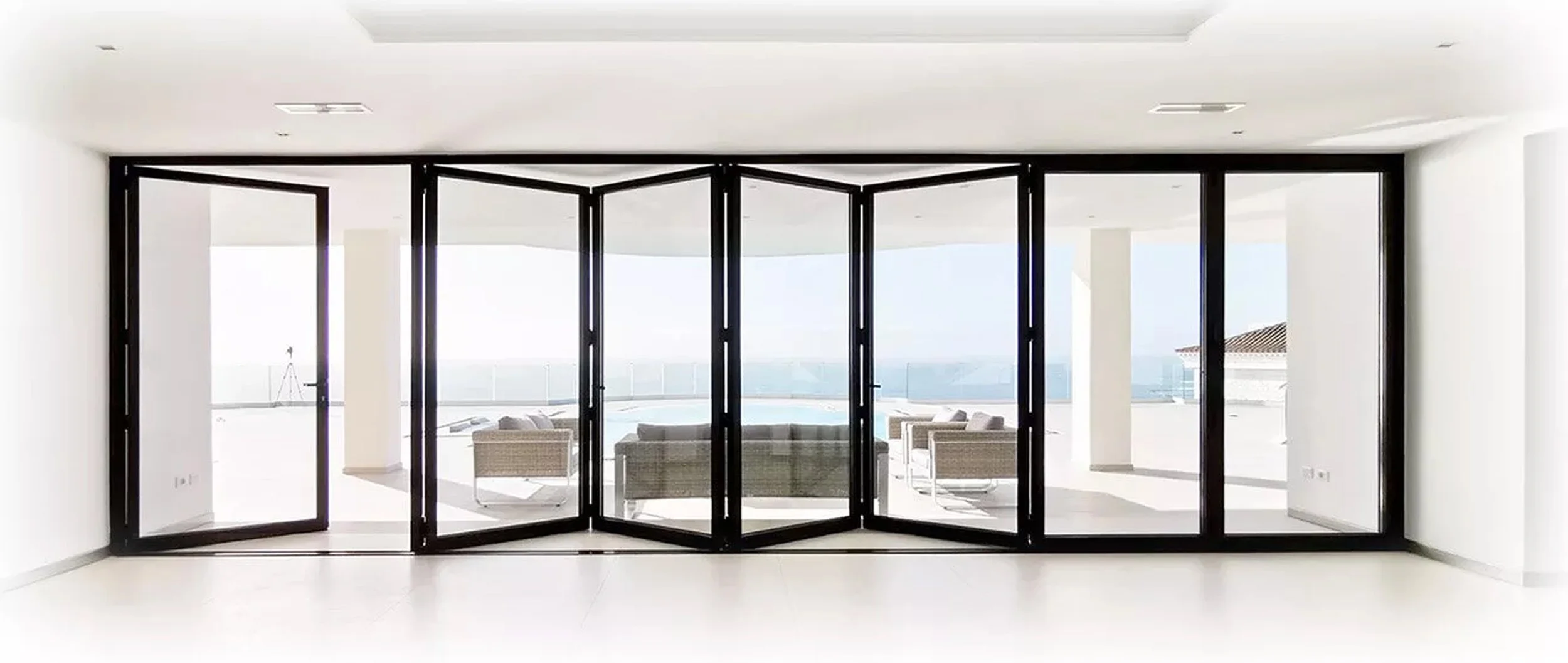

Your Home -Your Configuration

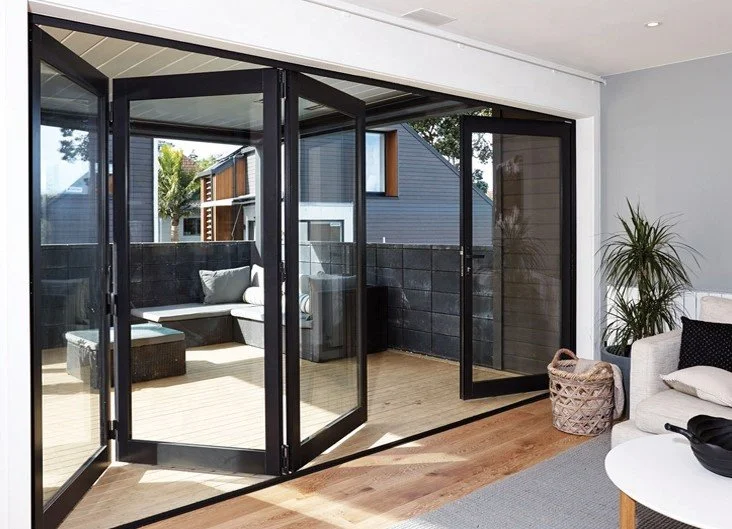

Our folding door systems are made from premium aluminum construction while offering high quality at competitive costs. With the large glass panels and expansive openings, these doors are sure to add beauty and value to any home.
We offer near endless configurations that can include:
single casement, multi stacking, corner stacking, & center locking.
Difference is in the Design
Our folding door systems makes use of premium locking mechanisms for maximum compression to protect you from extreme pressure, wind and water conditions - all while keeping your energy costs down with thermal breaks and dual-pane, low-e glass.

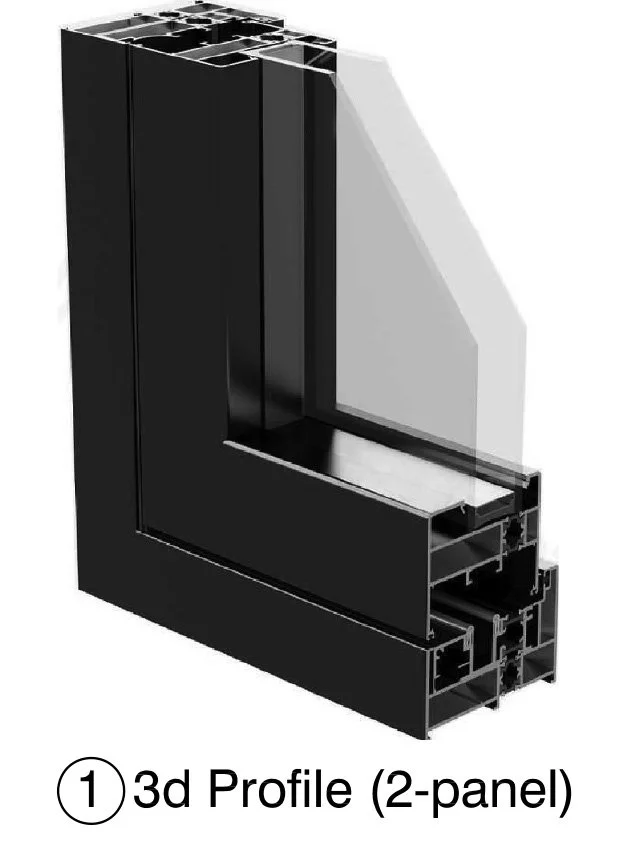

Frames are assembled using eccentric pin or press, mitered corners. This, with stainless steel corner chevrons guarantee a perfect alignment.
Safety First
Nothing is more important than safety and comfort in your home, especially with children around. Our folding door systems come with finger-safe gaskets to protect against injuries and fingers getting trapped.
